Five Toes Terry Sock Machine

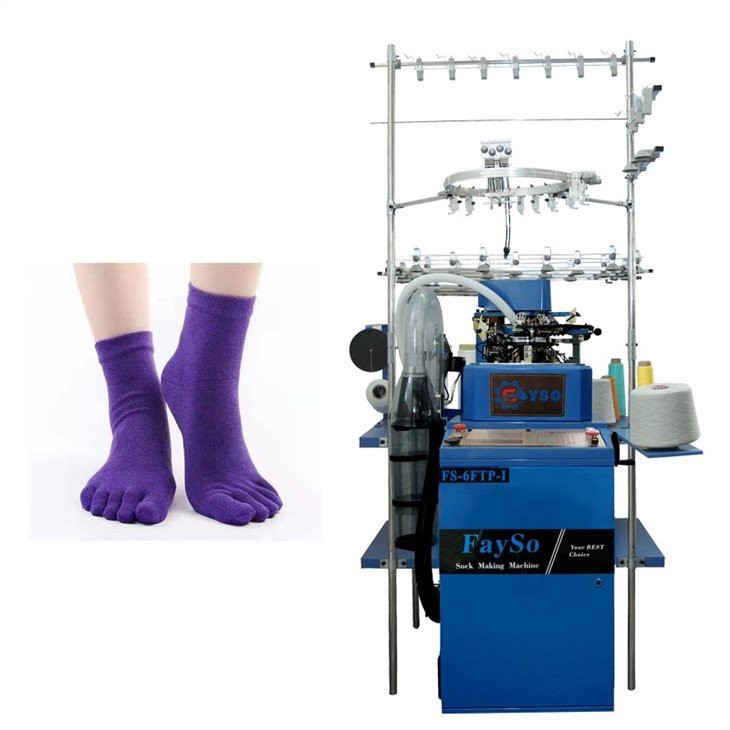

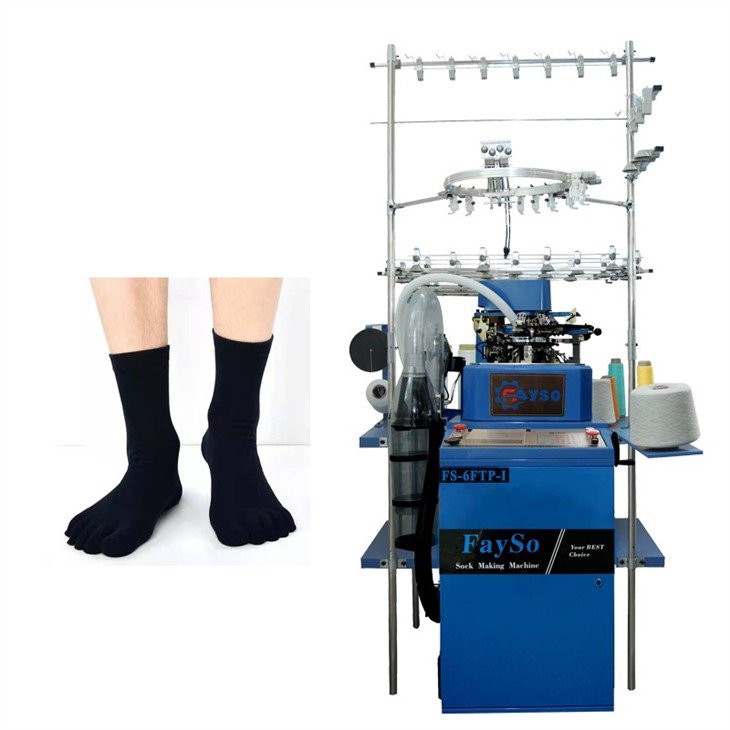

Model | FS-6FTP-I Five Toes Terry Sock Machine | |
Cylinder | 3.75" | |
Needle Count | 96N 108N | Baby Socks |
120N | Children Socks | |
132N | Teenager Socks | |
144N | Ladies or Men's Socks | |
156N 168N | Men's Socks | |
200N | Quality Men's Socks | |
Production Capacity | 250~400 pairs/24 hours according to different sizes of socks | |
Voltage | 380V/220V | |
Gross Weight | 300 KGS | |

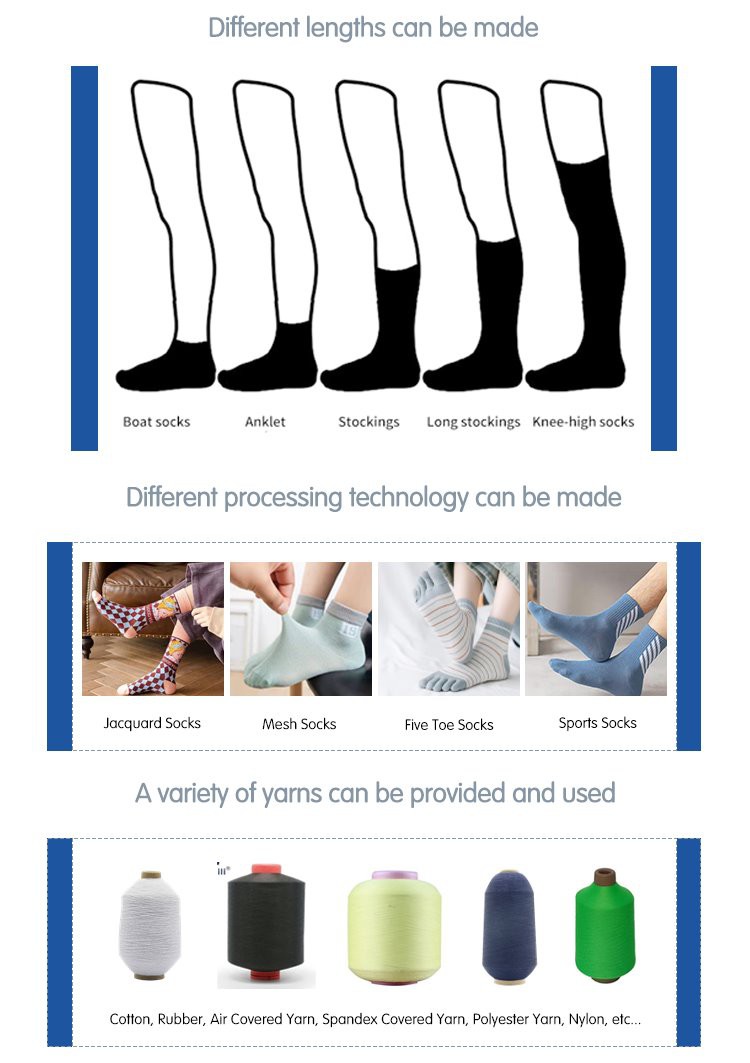

Knitting Socks Type:
Way of knitting: Plain, terry including high or low terry, jacquard, mesh, double welts, etc
Knitting style: Business socks, casual socks, high knee socks, school socks, etc
Socks functions: 3d socks, low cut socks, diabetic socks, left and right socks, big heel socks, small heel socks, high heel socks, and socks with two-color heel and toe, socks with bottom toe linking, invisible socks etc
Standard Configuration
1. Controller: Mingde controller is adopted, which is compatible with glory system. Glory is also optional.
2. Servo Motor: Royaltec or Y.M.C, both of them are stable in performance and less repair rate.
3. Pneumatic Cylinder: LIDING, best brand in China.
4. Selector: Mingde brand as standard configuration, Fushun brand will be optional if buyer requires.
5. Needles: Feijian or Golden Roc brand.
6. Cams: using cutting part instead of casting part, which has a longer life.
7. Standard air valve configuration.
8. Package: Plywood case
9. Voltage: 380V 3phase is standard, 220V 1/2phase, 220V 3phase, 415V 3phase are also optional.
10. Space required: 1*1.4*2.4m (after installation)
Optional Function
1. Suction fan motor 1.1kw (for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over 10 sets, central suction fan motor is better, which can help save electricity consumption greatly)
2. Solenoid on main feeders, sub-feeders, valve box
3. BTSR yarn break sensors
4. LGL or Chinese brand accumulators
5. Robert yarn creels
